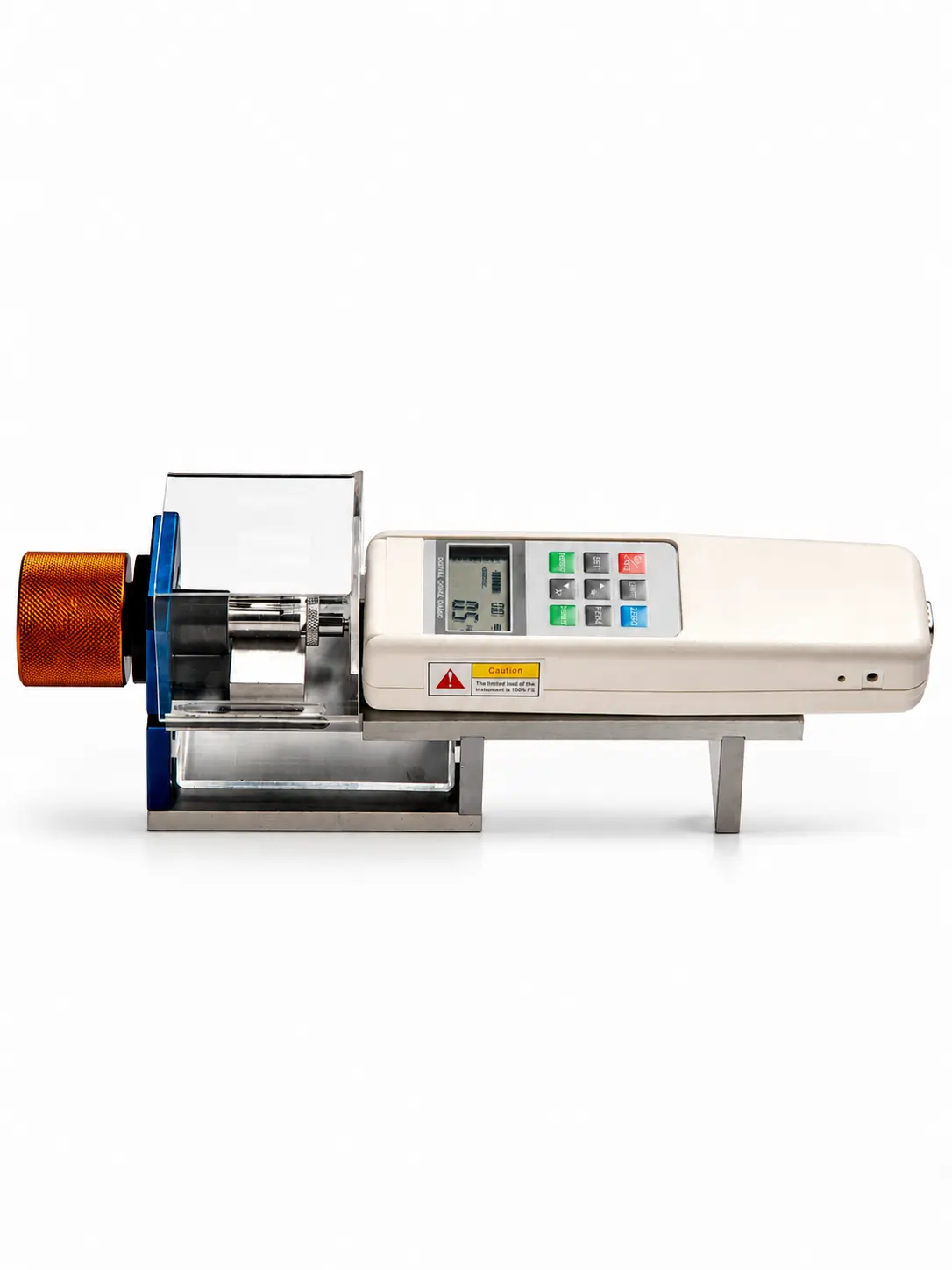

Portable Tablet Hardness Tester (Digital)
A compact, highly accurate, and motorized digital instrument designed to measure the breaking force of pharmaceutical tablets. It features an LCD backlit display, built-in load cell technology up to 500N and external printer connectivity to ensure strict compliance with international USP testing standards.
-
Display: LCD with Backlit Display
-
Operation: User-Friendly Keypad Operation
-
Hardness Range: 5-500N
-
Accuracy: ±0.05% FS
-
Measurable Units: N, KGF, LBF
-
Interface: RS-232 Communication Port
-
Battery: Rechargeable Battery
-
Peak Force Measurement: Available
-
Acrylic Safety Cover: Yes
-
Stored Results: Multiple Result Storage
-
Auto Unit Conversion: Yes
-
Tablet Size Compatibility: 2mm to 28mm
-
Portable Design: Yes
-
Power Supply: 230V, 50Hz
Features
- Compact and portable design
- High precision hardness testing
- LCD backlit display
- Automatic unit conversion
- Real-time data transfer support
- Peak force measurement function
- Multiple result storage capability
- Programmable tolerance settings
- Audio and visual indication system
- Durable industrial construction
Benefits
- Improves industrial quality control
- Ensures accurate hardness analysis
- Reduces manual testing errors
- Enhances testing efficiency
- Suitable for multiple industries
- Easy operation and maintenance
- Supports research and analytical applications
- Reliable performance for routine testing
- Helps maintain product consistency
- Ideal for laboratory and industrial environments
-
Multi-Unit Measurement: Instantly switches between N, KGF, and Lbf units.
-
USP Compliance: Fully complies with international pharmacopeia USP requirements.
-
Data Processing: Stores and prints up to 10 test values with full statistical analysis.
-
Tolerance Settings: Features programmable upper (T1) and lower (T2) tolerance limits.
-
Battery-Operated: Runs on a rechargeable battery for portable laboratory use.
-
Printer Output: External RS-232 port interface for real-time reporting
