KwikDraw Tubes
KwikDraw Gas Detector Tubes provide a simple, reliable and cost-effective solution for detecting and measuring hazardous gases and vapors on-site. Designed for use with KwikDraw sampling pumps, these colorimetric detector tubes deliver fast and accurate readings without requiring power, calibration or laboratory analysis. Suitable for industrial safety, environmental monitoring, confined space entry and emergency response applications.

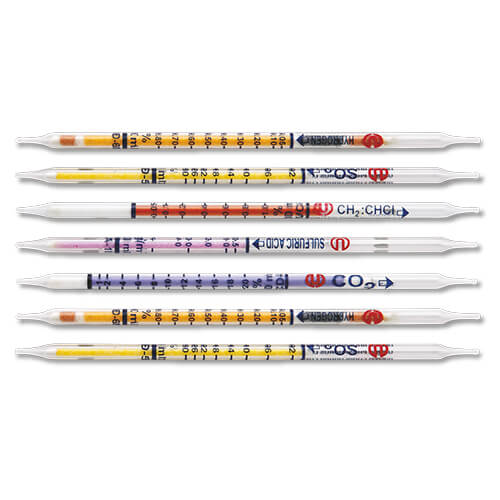

KwikDraw detector Tubes formerly known as MSA/AUER detector tubes are a reliable method of testing more than 200 hazardous gases and vapors. A sample is drawn by connecting the detector tube to a special bellows-type pump that draws a known volume of air with each stroke. The Sensing Chemical in detector tubes will change color if target gas is present in the sample air. The length of this discoloration indicates the concentration of the hazardous gas or Vapour and can be measured by a printed scale on most of the tubes.
KwikDraw Detector Tubes are pre-calibrated and provide quick, economical monitoring for wide range of various Toxic and Hazardous gases. The Kwikdraw Deluxe pump and Gas Tester II offer automatic stoke counter with unique end of stroke indicator.
- Highly specific-target gas
- Simple device
- No requirement of complicated accessories
- No requirement of specialist-operate
- It is pre-calibrated and reads directly the target gas concentration
- Available for most of the industrial toxic gases and chemical vapours
|
Substance |
Standard Range |
Extended Range |
Tube Name |
|---|---|---|---|
|
Acetaldehyde |
5-50 ppm |
- |
Formaldehyde-0.1 |
|
Acetic Acid |
5-80 ppm |
1-80 ppm |
Acetic Acid-1 |
|
Acetylene |
400-8300 ppm |
- |
CO-0.1% |
|
Acetone |
100-10000 ppm |
- |
Acetone-100 |
|
Acetone |
25-3500 ppm |
- |
MEK-50 |
|
Acrolein |
0.1-10 ppm |
- |
Acrolein-0.1 |
|
Acrylonitrile |
0.5-30 ppm |
- |
Acrylonitrile-0.5 |
|
Alcohols |
100-6000 ppm |
- |
Ethanol-100 |
|
Amines |
5-30 ppm |
- |
Triethyl Amine-5 |
|
Ammonia |
0.25-3 ppm |
- |
NH3-0.25 |
|
Ammonia |
2-600 ppm |
2-600 ppm |
NH3-2 |
|
Ammonia |
20-600 ppm |
2-600 ppm |
NH3-2 RH |
|
Ammonia |
20-4000 ppm |
- |
NH3-20 |
|
Ammonia |
100-2000 ppm |
- |
NH3-100 |
|
Ammonia |
0.1-10 % |
0.5-10 Vol% |
NH3-0.1% |
|
Aniline |
0.5-30 ppm |
2-30 ppm |
Aniline-0.5 |
|
Arsine |
0.05-1 ppm |
- |
Arsine-0.05 |
|
Benzene |
0.25-10 ppm |
0.5-10 ppm |
Benzene-0.25 |
|
Benzene |
0.25-10 ppm |
2-10 ppm |
C6H6-0.25/a |
|
Benzene |
1-25 ppm |
5-100 ppm |
C6H6-1 |
|
Benzene |
5-100 ppm |
- |
C6H6-5 |
|
Bromine |
0.2-3 ppm |
- |
Cl2-0.2 |
|
Carbon Dioxide |
100-3000 ppm |
- |
CO2-100 |
|
Carbon Dioxide |
0.1-7 % |
0.5-7 Vol% |
CO2-0.1% |
|
Carbon Dioxide |
0.5-10 % |
- |
CO2-0.5% |
|
Carbon Monoxide |
50-1000 ppm |
5-1000 ppm |
CO-5 |
|
Carbon Monoxide |
10-3000 ppm |
100-3000 ppm |
CO-10 |
|
Carbon Monoxide |
0.001-0.3 % |
0.01-0.3 Vol% |
CO-10% |
|
Carbon Monoxide |
0.1-1 % |
- |
CO-0.1% |
|
Carbon Monoxide |
3000-70000 ppm |
- |
CO-3000 |
|
Chlorine |
0.2-30 ppm |
- |
Cl2-0.2 |
|
Chlorine Dioxide |
0.05-15 ppm |
- |
ClO2-0.05 |
|
Cyclohexane |
40-3000 ppm |
40-200 ppm |
Cyclohexane-40 |
|
Cyclohexane |
100-1500 ppm |
- |
Cyclohexane-100 |
|
Dichloromethane |
100-1000 ppm |
50-1000 ppm |
Dichloromethane-50 |
|
Dimethyl Hydrazine |
0.1-3 ppm |
0.5-10 ppm |
Hydrazine-0.1 |
|
Ethyl Acetate |
200-3000 ppm |
- |
Ethyl Acetate-200 |
|
Ethylene Glycol |
10-180 mg/m³ |
- |
Ethylene Glycol-10 |
|
Formaldehyde |
0.2-2.5 ppm |
0.1-2.5 ppm |
Formaldehyde-0.1 |
|
Gasoline |
30-6000 ppm |
- |
Gasoline-30 |
|
Hydrogen Chloride |
5-50 ppm |
1-50 ppm |
HCl-1 |
|
Hydrogen Chloride |
50-500 ppm |
50-5000 ppm |
HCl-50 |
|
Hydrogen Cyanide |
2-50 ppm |
5-50 ppm |
HCN-2 |
|
Hydrogen Fluoride |
1-50 ppm |
5-50 ppm |
HF-1 |
|
Hydrogen Peroxide |
0.1-3 ppm |
- |
H2O2-0.1 |
|
Hydrogen Sulfide |
0.1-6 ppm |
- |
H2S-0.1 |
|
Hydrogen Sulfide |
1-200 ppm |
- |
H2S-1 |
|
Hydrogen Sulfide |
10-200 ppm |
1-200 ppm |
H2S-1C |
|
Hydrogen Sulfide |
100-4000 ppm |
- |
H2S-100 |
|
Hydrogen Sulfide |
0.1-4 % |
- |
H2S-0.4% |
|
Mercury |
0.1-0.8 mg/m³ |
- |
Hg-0.01 |
|
Methyl Bromide |
2-8 ppm |
0.2-8 ppm |
Methyl Bromide-0.2 |
|
Nitrogen Dioxide |
0.5-50 ppm |
- |
NO2-0.5 |
|
Ozone |
0.5-5 ppm |
0.05-5 ppm |
Ozone-0.05 |
|
Oxygen |
3-24 % |
- |
Oxygen-3 |
|
Phenol |
1-15 ppm |
1-25 ppm |
Phenol-1 |
|
Phosgene |
1-20 ppm |
0.1-20 ppm |
Phosgene-0.1 |
|
Phosphine |
0.05-3 ppm |
0.1-3 ppm |
PH3-0.05 |
|
Sulfur Dioxide |
2-30 ppm |
0.5-30 ppm |
SO2-1 |
|
Sulfur Dioxide |
5-200 ppm |
20-200 ppm |
SO2-5 |
|
Sulfur Dioxide |
100-4000 ppm |
500-4000 ppm |
SO2-100 |
|
Styrene |
10-300 ppm |
- |
Styrene-10 |
|
Tetrachloroethylene |
5-200 ppm |
10-500 ppm |
Per-5 |
|
Toluene |
5-1000 ppm |
- |
Tol-5 |
|
Vinyl Chloride |
1-200 ppm |
10-200 ppm |
VC-1 |
|
Water Vapour |
10-100 % RH |
- |
H2O [r.h.%] |
|
Xylene |
10-800 ppm |
10-800 ppm |
Aromatic HC |
|
Xylene |
10-400 ppm |
- |
Xylene-10 |
It is useful for the air monitoring at work place & confined space in Industries like:
- Petrochemical & Refineries
- Pharmaceutical
- Chemical & Fertilizer
- Fumigation
- Food Industry
- Pulp & Paper Mills Industries
- Power & Steel Plants
- Municipal Corporations
- Environmental monitoring agencies and many more
