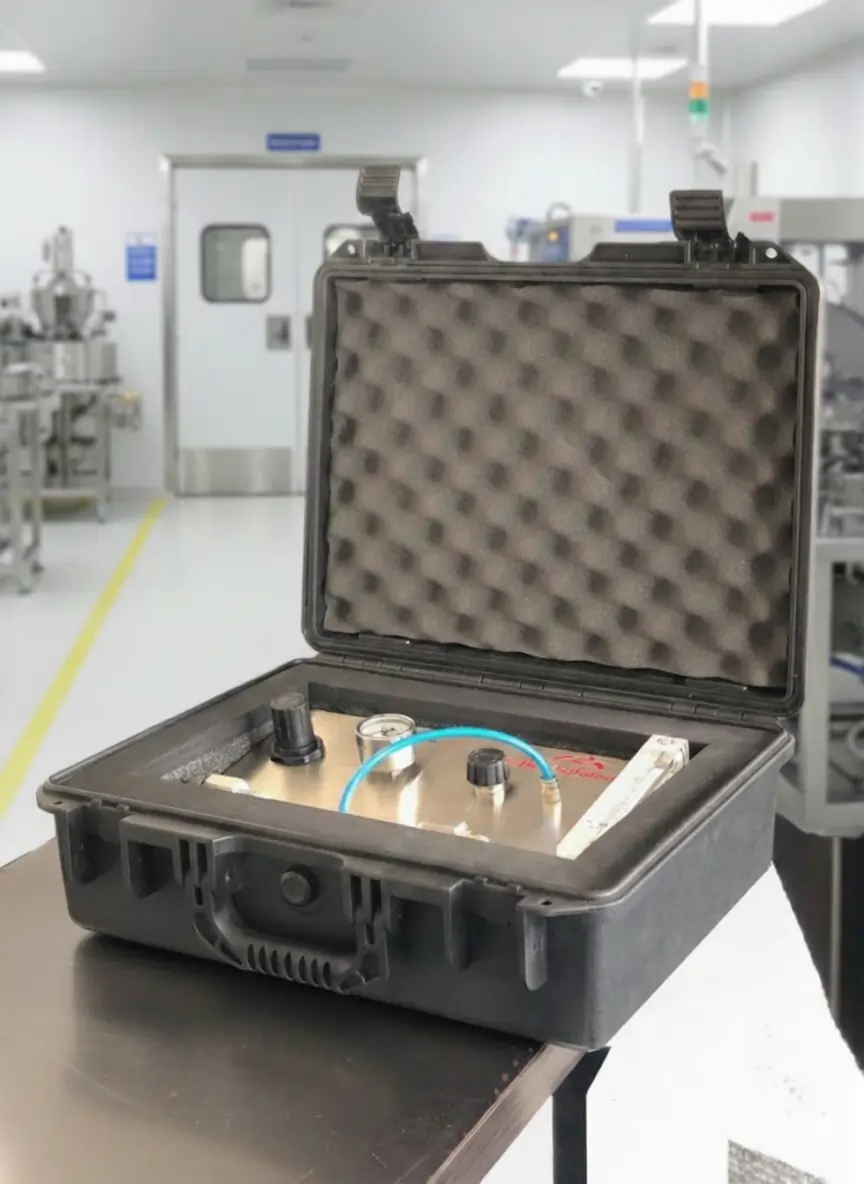

COMPRESS AIR TESTING KIT
A compressed air testing kit is a specialized tool used to measure the purity and safety of air produced by compressors, ensuring it meets standards like ISO 8573-1 for breathing or industrial use.
- Pressure Reducer: Scales high-line pressure down to a safe testing level.
- Measurement Manifold: Connects multiple detector tubes simultaneously.
- Detector Tubes: Colorimetric tubes for CO,CO2, H2O and Oil.
- Stopwatch & Tube Opener: For precise timing and preparation.
- Rugged Carrying Case: For protection and easy transport to various sites.
- Pressure Range: Commonly 10 bar (145 psi) for low-pressure or up to 300 bar (4500 psi) for high-pressure systems.
- Flow Rate: Pre-set (e.g., 0.2 L/min to 4.0 L/min depending on the tube).
- Connection Type: G 5/8" or quick-connect couplings.
- Testing Time: Results typically available in 5 to 10 minutes.
- Simultaneous Testing: Measures up to four contaminants at once to save time.
- No Power Required: Fully mechanical design makes it ideal for remote or hazardous locations.
- Safety Compliance: Ensures air quality meets EN 12021 (Breathing Air) or ISO 8573-1 (Industrial) standards.
- Cost-Effective: Prevents expensive equipment damage and product contamination by identifying moisture or oil leaks early.
This portable system is designed to detect and quantify contaminants such as oil aerosols, water vapor (moisture), carbon monoxide (CO), and carbon dioxide (CO2). It uses a pressure reducer and manifold to allow air to flow at a controlled rate through various detector tubes or impactors, providing immediate on-site results without the need for an external power source.
